Product Description

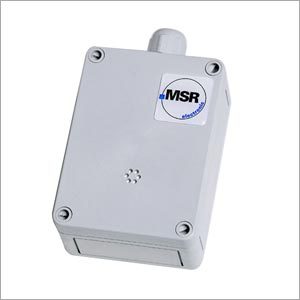

Carbon Monoxide Gas Sensor Transmitter
We are engaged in offer carbon monoxide sensor transmitter, supplied by Gas Alarm Marketing for detection of carbon monoxide concentration in building, parking lot, confined space, coal mines, thermal power plants, steel plants,
Features:
- 0-300 ppm measuring range (standard), other measuring range 0-500 ppm, 0-2000 ppm, 0-20000 ppm (0-2% Vol) also available
- Electro-chemical based sensing technology (dual beam NDIR infra-red technology also available for higher measuring range)
- 4-20mA / 0- 10 V analog signal output, digital output with RS 485 serial interface also available
- reverse polarity, short circuit protected,
- plug-in sensor cell (for easy service and replacement), replaceable PCB
- expected life > 5years,
- GEL based CO cell ( no membrane rupture, no leak, no orientation effect, no poisoning, over flood protection)
- available in IP44 and IP65 (optional)

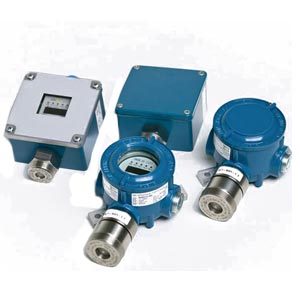

Ex version with ATEX certification also available for underground mines, hazardous area, zone defined area, oil & gas, coal mines, collieries, etc.
MSR gas transmitters can easily connected to PLC, BMS, SCADA, DCS system for analysis, monitor, control and automation.
Application area:
- Parking area, ventilation
- Buildings
- Coal mines
- Coal bunkers
- Ports, containers
- Thermal power plants, boilers
- Furnace, coal based furnace
- Combustion area
- Underground
- Mines, coal mines
- Oil & gas
Following Gas sensor transmitters are also available:
Acetic Acid, Ethylene, JP8, Ozone , Acetone, Ethylene Oxide, LPG, Petrol Vapors, Acetylene, Fluorine, Mercaptan, Thiols, phosphine, Ammonia, Formaldehyde, Methane, Propane, Benzene, Hydrazine, Methanol, Propyl Alcohol, Carbon Dioxide , CO2, Hydrogen, Butane, propylene, Propene, Carbon Monoxide, CO, Hydrogen Chloride, Heptane, Silane, Chlorine, Cl2, Hydrogen Cyanide, Hexane, Styrene, Chlorine Dioxide, ClO2, Hydrogen Fluoride, Nitrogen Dioxide, NO2, Sulfur Hexafluoride, SF6, Cyclopentane, Hydrogen Sulphide, Nitrogen Oxide, NO, Sulphur Dioxide, SO2, Dinitrogen Oxide, N2O, Iso Butane, Nitrogen Trifluoride, tetrahydrothiophene, Ethane, C2H6, Iso Butyl Alcohol, Octane, Toluene, Ethyl Acetate, nonane, Trimethyl Amine, Ethyl Alcohol, Propanol, n-Pentane, Trimethyl Benzene, Ethyl Mercaptan, Iso Propyl Alcohol, Oxygen, Xylene, Carbon Dichloride Oxide, Phosgene, Refrigerant, Freon, R134a, R22, R401a, R401b, R402a, R402b, R407c, R408a, R409a, R410a, R411a, R416a, R507, Air Quality, Volatile Organic Compound, VOC + CO2, Methyl Ethyl Ketone, MEK, C4H8O
